AFR 227 Comp Ported Cylinder Heads SP - 65cc

  • Image 1
  • Image 2
Your Price:
$2,266.00 (You save $70.00)
70.00 LBS
Calculated at checkout

Product Description

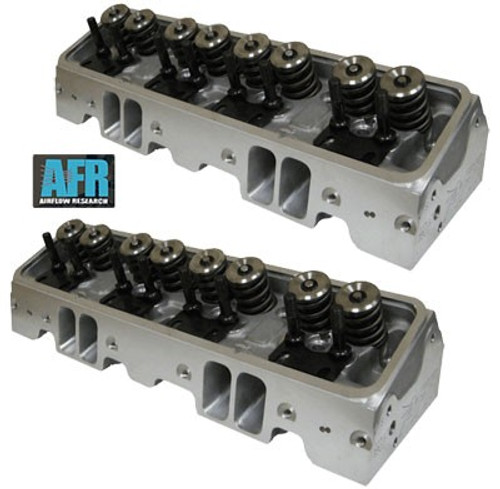

AFR 227 SB Chevy "Competition" Series Cylinder Head SP - (65cc)

Proven Design - Featuring 60/40 Valve Spacing

These AFR 227 "Competition Series" small block Chevrolet cylinder heads are 100% CNC ported with finer machine levels and improved port-shaped details for optimum flow characteristics from the 227cc intake runners, 80cc exhaust ports and 65cc combustion chambers. The exhaust port is raised .25" over factory GM L-98 cylinder head.

With the trademark AFR 3/4” thick head deck, these castings are ideal for nitrous or blower applications. Standard valves are lightweight 2.100" intake and 1.600" exhaust valve diameters with 8mm valve stems. Hardened ductile iron interlocking valve seats. These AFR 227cc "Competition" series heads have a non-stock 60/40 valve spacing so piston valve pockets must be checked and verified.

The AFR 1124 cylinder heads feature standard center port exhaust locations. Jomar offset stud girdles are the only special parts required. Requires specific shaft mount rockers or .050" offset rocker arms for durability and reliability of valvetrain components. The .050" offset the intake rocker arm will be at a slight angle and the roller tip will not be perfectly parallel or centered on the valve tip. Not recommended for street use, unless shaft mount rocker is used.

The exceptional flow characteristics and 23° valve angle make this the perfect head for 355 to 434+ cubic inch engines in drag cars, sprint cars and late model oval track power plants operating from 4500 RPM and up.

AFR 227 Competition Series heads include:
* 8mm bead lock stainless valves
* AFR 8000 Dual valve springs
* 10 degree chromemoly retainers
* 10 degree bead lock keepers
* 7/16" ARP rocker studs
* Adj. 5/16" push rod guide plates
* Steel shell viton valve seals
* Hardened valve spring locators
* Ductile iron valve seats
* Bronze valve guides

These heads feature SPREAD PORT exhaust spacing.


NOTE: These cylinder heads can be custom built with any valvetrain required for your project
