Custom Intake Gaskets - SB Ford XL

  • Port Alignment
  • Image 4
  • Image 5
Your Price:
$29.99 (You save $5.00)
1.00 LBS
Calculated at checkout

Product Description

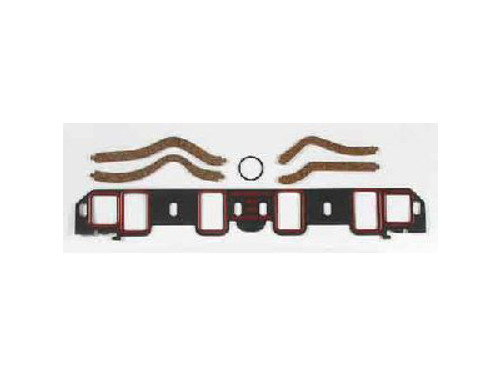

Custom "X-tra Thick" Intake Manifold Gasket (SB Ford Race Port)

When building a serious small block Ford engine and the situation calls for a custom thickness intake manifold gasket for your large runner cylinder heads, we have the finishing touch. FlowTech Induction has worked with the engineers at Cometic to provide the answer to your port alignment issues. Utilizing Cometic's proven synthetic Aramid fiber intake gasket material, we are able to provide racers with the most durable and perfectly fitted Ford intake gaskets available.

All these custom designed "X-tra Thick" intake gaskets are made from high-temperature, high-density, creep resistant and fuel resistant material that requires no retorquing. Cometic's Aramid fiber intake gaskets contain no asbestos and does not require additional sealants. For street applications using coolant, a touch of RTV at the water jackets is suggested.

Please note, these specialty intake gaskets are designed for proper port fitment and alignment to large "race port" style cylinder heads such as Air Flow Research 205, 220 and 225 heads. Also fits our own CNC ported TFS High Port 230, 240 and large runner Twisted Wedge 203 racing heads. May also fit other race ported heads with similar intake port dimensions. Port configuration can be easily trimmed or sanded for a perfect fit to your particular cylinder heads and intake manifold. There are times when different thicknesses are required on each side, measure carefully.

Now "FIVE" nominal thicknesses are available: .031" - .060" - .094" - .125" - .200"

You must specify thickness when ordering

2.150" Height  (nominal)
1.310" Width  (nominal)
3/8" radius in corners

SPECIFY 1/32", 1/16", 1/8" or 3/16" thick material

***  SOLD EACH  ***




Find Similar Products by Category

Write your own product review

Product Reviews

  1. Fit Great and arrived Fast 5 Star Review

    Posted by on 4th Mar 2022

    These fit my Systemax 2 perfectly worked well with my Canfield 192’s. definitely a nice set of Gaskets

  2. no issues 5 Star Review

    Posted by on 17th Jun 2020

    i had no issues with fitment. the gasket material was superior

  3. Very nice gaskets. 5 Star Review

    Posted by on 6th Aug 2014

    These are high quality gaskets. They fit the port of my Brodix 225 cc Track 1 heads with a little trimming. They are a lot nicer than the Felpro 1262r type gaskets.

  4. Thick intake gaskets 5 Star Review

    Posted by on 5th Mar 2013

    I was very pleased with these thick intake gaskets, they are great quality and saved me from buying another intake. My Super Victor EFI was milled down to work with a set of AFR 185's, I went to a set of TEA 225 High Ports and needed around .180 thick gasket to make it line back up. It worked perfect, very pleased with these gaskets.
